Product introduction:

Coya four-wheel drive mobile platform is for the airport runway detection, and independent development of the machine. This machine sets four independent steering, four independent walking, electronic brake, hydraulic brake, independent shock absorption and other multi-functional models. Solid shell design, super bearing capacity, optimal path walking mode, extremely fast corresponding speed. Strong anti-interference frequency hopping technology, disruptive eight-motor cooperative working mode, strong low-speed traction, reliable braking and stopping on the slope and other functions. The application range of this machine has been greatly improved. According to customer requirements can be modified into patrol inspection, transportation, road surface inspection and other robots.

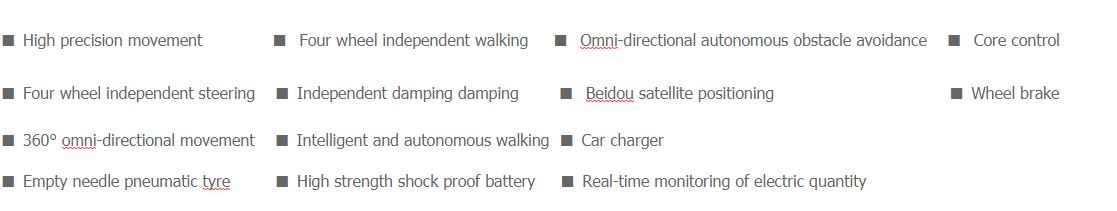

Performance features:

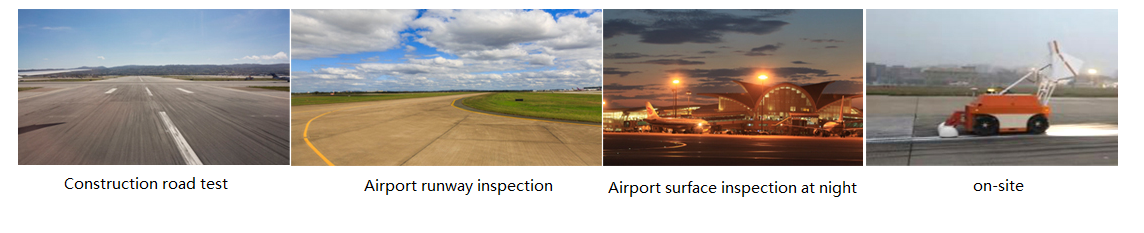

Application:

It is applied to the working environment of airport pavement, expressway, viaduct and highway. It can also be modified for cargo handling in the logistics industry.
Application significance:
All-wheel-drive wheeled mobile platform through information fusion and high precision positioning, independent path planning, high precision navigation strategy implementation airport pavement (runway, taxiway and apron) of efficient data collection, a variety of detection sensor data accurately in space and time synchronization, can adapt to work at night, detect the mission planning and airport airfield management system compatible with the current intelligent obstacle avoidance module can ensure the safety of the robot run.

Application technology:

1. Adopt self-produced large-torque servo motor and driver.
2. Equipped with high-precision beidou satellite receiving antenna.
3. Adopt the design concept of four-wheel independent walking and independent turning, and adopt various motion program algorithms to realize the optimal path walking.
4. The same braking mechanism as the car is adopted to enhance the running stability of the machine.
5. Automobile grade anti-shock and impact lithium battery is adopted to enhance the safety of this machine.
6. The four wheels adopt vacuum tires to enhance the driving safety.

Application:

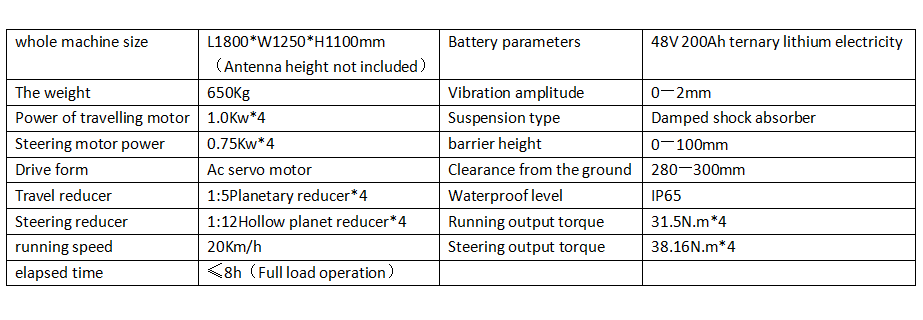

Product parameters:
