Product introduction:

The omni-directional intelligent mobile platform adopts McNamb wheel as the driving wheel, which is compact in structure and flexible in movement. It can move forward and backward, horizontally shift, laterally move and rotate in place. It is applicable to the working environment with limited transport space and narrow operation channel, and has significant effects in improving work efficiency, increasing space utilization rate and reducing labor cost.

Application:

Used in large warehouses, workshops, high-speed rail, ships, docks, aircraft assembly and other places and transfer space is limited, narrow access to the work environment.
Application significance:
With omnidirectional mobility, the platform can support heavy objects to realize precise positioning, docking and assembly, greatly simplifying the assembly process, enhancing operability, reducing assembly risks and improving production efficiency. For some parts that are not suitable for crane lifting and handling, or parts that are difficult to lift indoors, as well as heavy parts that need to be carried over a long distance, omni-directional mobile platform can provide a good solution.

Application technology:

1. Adopt self-developed large-torque ac servo motor with large starting torque and strong low-speed traction.
2. McNamb wheel technology, four-wheel independent drive, four-wheel independent suspension.
3. With customizable expansion ability, it can be used with other assembly equipment.
4. The control forms are diversified, including line control, remote control, automatic follow, satellite positioning, visual navigation, magnetic nail and two-dimensional code command walking.
5. The platform has the functions of autonomous navigation, automatic obstacle avoidance and automatic charging.

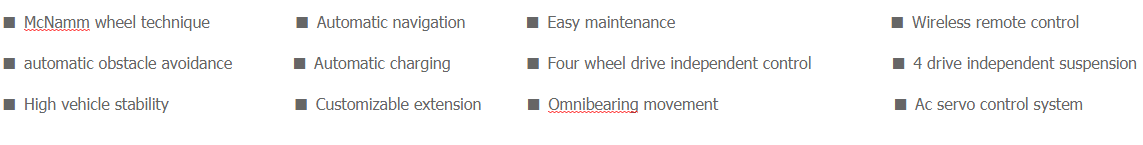

Performance features:

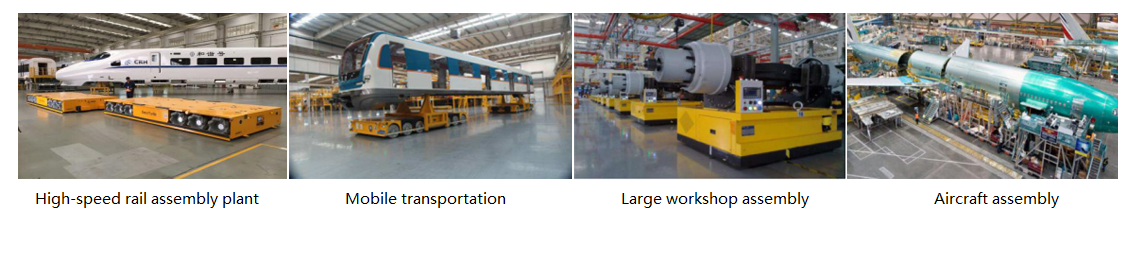

Application:

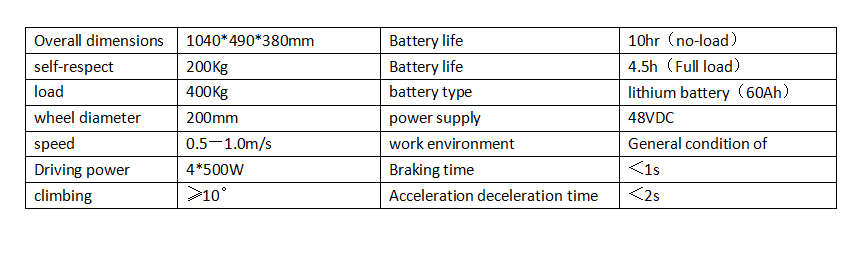

Product parameters:
